Wire braiding consisting of round braided monofiles with double crossed looping at the different braiding angles. Coverage: >85%
Material: polyamide 6.6 monofiles diameter 0,25 mm
Temperature: -55°C ...+125°C
Flammability class: V2 - UL 94

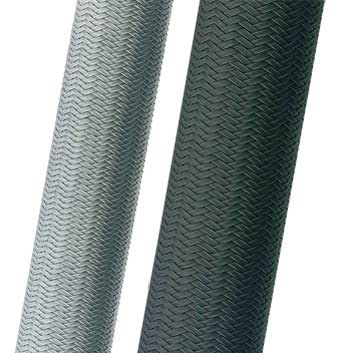

Wire braiding consisting of round braided monofiles with double crossed looping at the different braiding angles. Coverage: > 85%
Material: PET monofiles, diameter 0,22 mm
Temperature: -50°C ...+150°C
Wire braiding consisting of round braided monofiles with double crossed looping at the different braiding angles. Coverage: > 85%
Material: PET monofiles, diameter 0,22 mm
Temperature: -50°C ...+150°C
Wire braiding consisting of round braided wires with double crossed looping at the different braiding angles. Coverage: > 85%
Material: tinned copper wire
Temperature: -75°C ...+150°C
Wire braiding with PVC carrier conduit consisting of round braided wires with double crossed looping at the different braiding angles. Coverage: > 85%
Material: PVC, tinned copper wire
Temperature: -75°C ...+150°C
Wire braiding consisting of round braided wires with double crossed looping at the different braiding angles. Coverage: > 85%
Material: galvanized steel wire
Temperature: ...+300°C
Special protective conduit helix made of stainless steel, fiber glass braiding, silicone rubber sheathing, for the sensor technology and beam wave guide technics
Material: rust proof steel V2A, fiber glass braiding, silicone-rubber sheathing
Temperature: -60°C ...+260°C
Protective rate [acc. to EN 60529]: IP68
Special protective conduit helix made of stainless steel, fiber glass braiding, silicone rubber sheathing, for the sensor technology and beam wave guide technics
Material: rust proof steel V2A, fiber glass braiding, silicone-rubber sheathing
Temperature: -60°C ...+260°C
Protective rate [acc. to EN 60529]: IP68

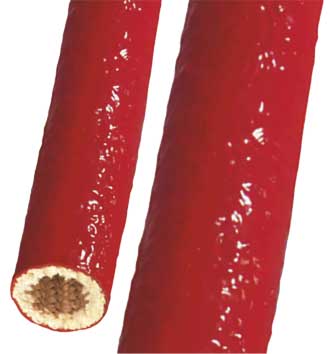

Fire protection conduit, non-flammable calcium-silicate braiding with silicone sheathing
Material: calcium-silicate-braiding silicone sheating
Temperature: -50°C ...+350°C ^+700°C
Tape with tightly woven selvedges thickness: 2-3 mm
Material: fireblocker coating aramid or calcium-silicate
Temperature: -50°C ...+300°C ^+700°C
Wrapping tape for fastening of fire protection conduit FLEXAhightemp
Material: silicone
Temperature: -50°C ...+300°C
Spiral bindings bundels and binds single wires protect wire harnesses, wire and lines
Material: LD-Polyethylene (PE)
Temperature: -40°C ...+80°C ^+100°C

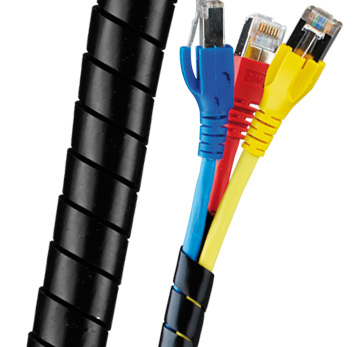

Spiral bindings bundels and binds single wires protect wire harnesses, wire and lines
Material: Polyamide 12 (PA)
Temperature: -50°C ...+100°C ^+150°C
