Flat-sealing for metric, PG, NPT and CTG threads
Material: perbunan
Temperature: -20°C ...+120°C
Flat-sealing for metric, PG, NPT and CTG threads especially for protective rate IP 68 and high mechanical stresses
Material: centellen
Temperature: -50°C ...+200°C
O-ring for metric and PG threads
Material: perbunan
Temperature: -20°C ...+120°C
Counternut especially for metal threads metric, PG, NPT or CTG
Material: nickel-plated brass
Temperature: -40°C ...+200°C
Counternut especially for plastic threads metric, PG, NPT or CTG
Material: polyamide, fibre-glass reinforced
Temperature: -40°C ...+100°C
Counternut separable especially for connector RQG-Duo-M
Material: PA 6 mod.
Temperature: -40°C ...+110°C, ^ +150°C
Counternut EMC with metrich or PG thread with cutting edges for best contact
Material: nickel-plated brass
Temperature: -40°C ...+200°C
Fitting sleeve connection metric to metric thread
Material: nickel-plated brass
Temperature: -40°C ...+200°C
Connecting elbow inner and outer thread metric or PG
Material: WIC-P zinc die-casting WIC-M nickel-plated brass
Temperature:
-40°C ...+100°C WIC-M
-20°C ...+100°C WIC-P
Reducer reduction of a metric or PG thread to a smaller size
Material: nickel-plated brass
Temperature: -40°C ...+200°C
Reducer reduction of a metric or PG thread to a smaller size
Material: polyamide, fibre-glass reinforced
Temperature: -30°C ...+100°C
Enlargement extension of a metric or PG thread into a larger size
Material: nickel-plated brass
Temperature: -40°C ...+200°C
Enlargement extension of a metric or PG thread into a larger size
Material: polyamide, fibre-glass reinforced
Temperature: -30°C ...+100°C
Adaptor to combine different types of threads metric or PG
Material: nickel-plated brass
Temperature: -40°C ...+200°C
Adaptor to combine different types of threads metric or PG
Material: polyamide, fibre-glass reinforced
Temperature: -30°C ...+100°C
Blind plug for metric or PG threads
Material: nickel-plated brass
Temperature: -40°C ...+200°C
Blind plug for metric or PG threads
Material: polyamide, fibre-glass reinforced
Temperature: -30°C ...+100°C
Adaptor with strain relief outer and inner thread metric or PG application In combination with all screw connectors
Material: body: nickel-plated brass sealing: TPE
Temperature: -40°C ...+100°C
Protective rate [acc. to EN 60529]: IP68

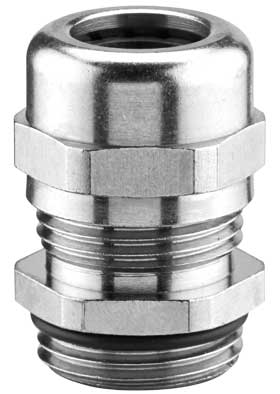

Cable gland with metric or PG thread
Material: body: nickel-plated brass sealing: perbunan
Temperature: -20°C ...+100°C ^+130°C
Protective rate [acc. to EN 60529]: IP68
Cable gland with metric or PG thread
Material: body: polyamide sealing: perbunan
Temperature: -20°C ...+100°C ^+130°C
Protective rate [acc. to EN 60529]: IP68
Multible Sealing insert for metric or PG threads with bore holes for installation of several single cables
Material: TPE
Temperature: -30°C ...+100°C
Sealing insert for metric or PG threads suitable to bore individual clearance holes
Material: TPE
Temperature range: -30°C ...+100°C
Fastening angle for metric or PG threads, angle sheet with a through-hole and two fastening bores
Material: steel, eloc-passivate
Temperature: -40°C ...+200°C
Connector fastening angle with metric or PG thread, connection holder with two fastening bores
Material: plastics [PP]
Temperature: -40°C ...+100°C
Tubing-Clamp pipe holder with through hole for fastening with screws
Material: galvanized steel with rubber-profile
Temperature range: -40°C ...+120°C
