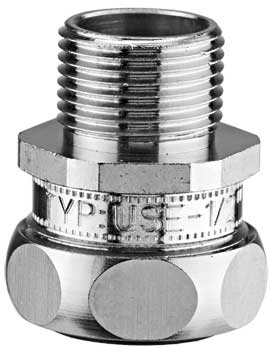

Metal connector, safety-type straight, outer thread metric or PG incl. ferrule [brass/plastic], sealing [TPE] or brass thrust collar and O-ring [NBR]
Material: nickel-plated brass
Temperature: -40°C ... +125°C -40°C ... +250°C with brass thrust collar [MSD]
Prot. rate [acc. to EN 60529]: IP40 - IP66
Metal connector, safety-type straight, metric inner thread, incl. ferrule made of brass and sealing made of TPE or brass thrust collar [MSD]
Material: nickel-plated brass
Temperature: -40°C ... +125°C -40°C ... +250°C with brass thrust collar [MSD]
Prot. rate [acc. to EN 60529]: IP40 - IP65
Metal connector, safety-type straight, turnable metric outer thread incl. ferrule made of brass, sealing made of TPE or brass thrust collar [MSD] and O-ring made of NBR
Material: nickel-plated brass
Temperature: -40°C ... +125°C -40°C ... +250°C with brass thrust collar [MSD]
Prot. rate [acc. to EN 60529]: IP40 - IP65

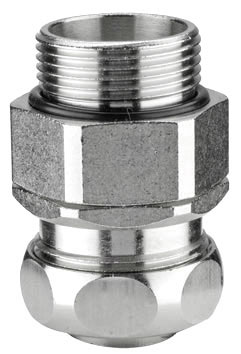

Metal connector, safety-type straight, metric outer thread, strain relief, incl. ferrule, sealing made of TPE or brass thrust collar [MSD] and O-ring
Material: nickel-plated brass
Temperature: -40°C ... +100°C
Prot. rate [acc. to EN 60529]: IP40 - IP65
Metal connector, safety-type straight, metric outer thread, strain relief for application in EX-Area, incl. ferrule, sealing made of TPE or brass thrust collar [MSD] and O-ring made of NBR
Material: nickel-plated brass
Temperature: -40°C ... +100°C
Prot. rate [acc. to EN 60529]: IP40
EMC metal connector, straight, outer thread metric or PG, incl. ferrule made of brass and O-Ring made of NBR
Material: nickel-plated brass
Temperature: -40°C ... +125°C
Prot. rate [acc. to EN 60529]: IP67

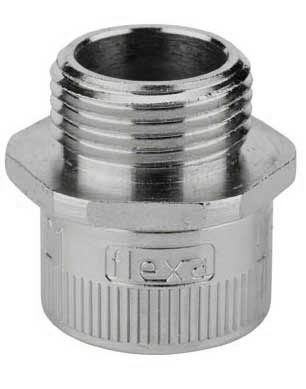

Metal connector, straight, outer thread metric or PG, integrated ferrule made of brass, turnable
Material: nickel-plated brass
Temperature: -40°C ... +250°C
Prot. rate [acc. to EN 60529]: IP40
Metal connector, straight, fixed outer thread metric or PG, integrated ferrule
Material: nickel-plated brass
Temperature: -40°C ... +250°C
Prot. rate [acc. to EN 60529]: IP40

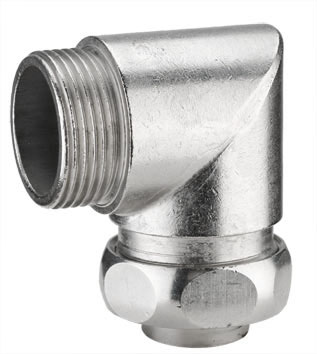

Metal connector, safety-type, 90° elbow outer thread metric or PG, incl. ferrule, sealing or brass thrust collar [MSD] and O-ring
Material: USW-M nickel-plated brass USW-P zinc die-casting
Temperature: -40°C ... +125°C -40°C ... +250°C with brass thrust collar [MSD]
Prot. rate [acc. to EN 60529]: IP40 - IP66

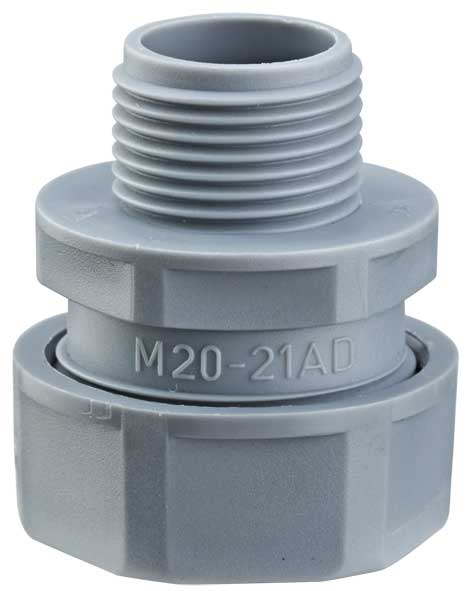

Plastic connector, straight, outer thread metric or PG, incl. ferrule and sealing
Material: plastics [PP]
Temperature: -10°C ... +110°C
Prot. rate [acc. to EN 60529]: IP54

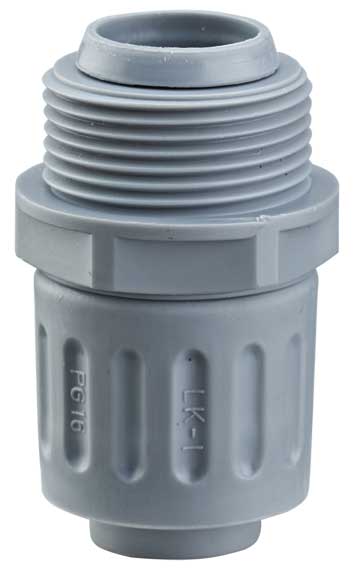

Plastic connector, straight, one-part, connecting thread metric or PG, turnable
Material: resistant plastics [PP]
Temperature: -10°C ... +110°C
Prot. rate [acc. to EN 60529]: IP54
Metal connector, safety-type, straight, outer thread metric or PG, incl. ferrule and sealing, UL and SETI approval
Material: nickel-plated brass
Temperature: -25°C ... +100°C
Prot. rate [acc. to EN 60529]: IP66

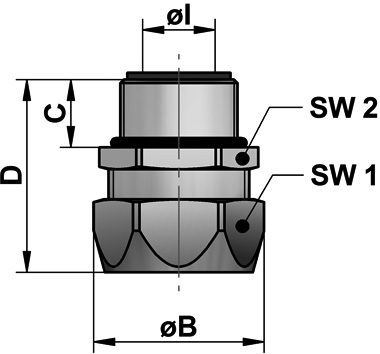

Metal connector, straight outer thread metric or PG, incl. ferulle and sealing, UL and CSA approval
Material: zinc die-casting
Temperature: -25°C ... +100°C
Prot. rate [acc. to EN 60529]: IP66

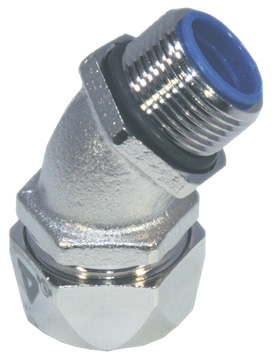

Metal connector, elbow 45° outer thread metric or PG, incl. ferrule and sealing, UL and CSA approval
Material: zinc die-casting
Temperature: -25°C ... +100°C
Prot. rate [acc. to EN 60529]: IP66

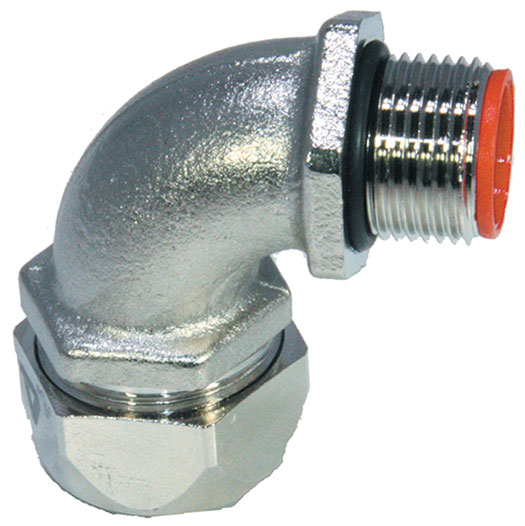

Metal connector, elbow 90° outer thread metric or PG, incl. ferule and sealing, UL and CSA approval
Material: zinc die-casting
Temperature: -25°C ... +100°C
Prot. rate [acc. to EN 60529]: IP66

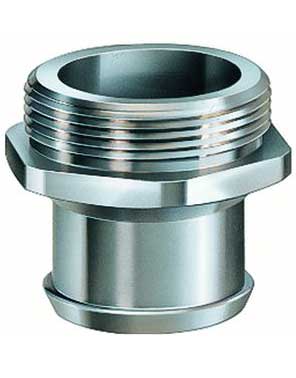

Metal conduit olive hexagon wrench surface, fixed outer thread metric or PG, incl. O-Ring
Material: nickel-plated brass
Temperature: -40°C ... +250°C
Prot. rate [acc. to EN 60529]: IP54 - 65
Conduit clamp suitable for conduit olive NIMS
Material: galvanized steel
Temperature: -40°C ... +120°C
Brass thrust collar suitable for connectors US for grounding and for shielding applications
Material: brass
Temperature: ...+250°C

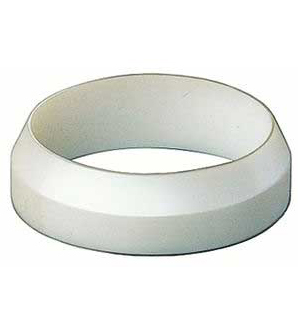

Sealing for connectors US and protective conduit FLEXAgraff®-SI-ASF
Material: PTFE
Temperature: -60°C ... +300°C

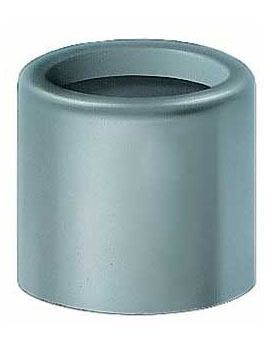

Zylindric plastic terminal sleeve for all protective conduit types made of metal and plastic
Material: polypropylene
Temperature: -10°C ... +110°C
End cap / transition from tubing to cable
Material: TPE
Temperature: -40°C ... +120°C ^+150°C
Terminal sleeves / ferrules for connectors US and USW as terminal sleeves for protective conduits
Material: brass
Temperature: -40°C ... +250°C
Terminal sleeves / ferrules for connectors US and USW as terminal sleeves for protective conduits
Material: brass
Temperature: -40°C ... +250°C
Terminal sleeves / ferrules for connectors USK as terminal sleeves for protective conduits AIRflex®
Material: plastics
Temperature: -10°C ... +110°C
