RQG

Plastic connector, quick-type, straight outer thread metric, PG, CTG or NPT, integrated snap-in sleeve with sealing, high sealing rate

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

RQGK

Plastic connector, quick-type, straight outer thread metric or PG made of nickel-plated brass, integrated snap-in sleeve with sealing, high sealing rate

Material: PA6

Temperature: -40°...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

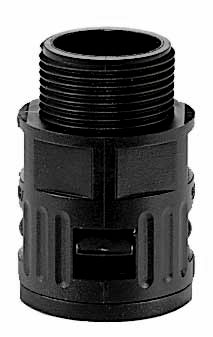

RQG1

Plastic connector, quick-type, straight outer thread metric, PG, CTG or NTP integrated snap-in sleeve, conically sealing

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP66

Flammability class: V0 - UL 94

RQG-Duo-M

Plastic connector, straight, separable, metric outer thread, especially for protective conduits ROHRflex-Duo

Material: PA6 mod.

Temperature: -40°...+110°C ^+150°C

Prot. rate [acc. to EN 60529]: IP50

Flammability class: V0 - UL 94

RQGKZP-M

Plastic connector, quick-type, straight metric outer thread made of nickel-plated brass, integrated snap-in sleeve with sealing, strain relief, high sealing rate

Material: PA6

Temperature: -40°...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

RQGKZ

Plastic connector, quick-type, straight outer thread metric or PG made of nickel-plated brass, integrated snap-in sleeve with sealing, strain relief, high sealing rate

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

RQGKZE

Plastic connector, quick-type, straight outer thread made of nickel-plated brass metric or PG, integrated snap-in sleeve with sealing, strain relief and shielding, high sealing rate

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

RQGZ

Plastic connector, quick-type, straight outer thread metric, PG or NPT, integrated snap-in sleeve with sealing, conically sealing

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

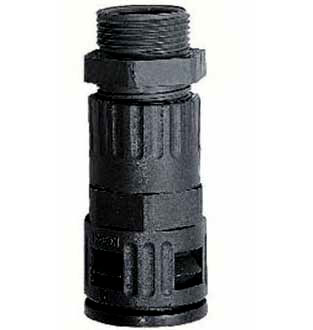

RQGZ1

Plastic connector, quick-type, straight outer thread metric, PG or NPT, integrated snap-in sleeve, strain relief, conically sealinge

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP66

Flammability class: V0 - UL 94

RQG2

Plastic connector, quick-type, straight inner thread metric PG, NPT or UNEF, integrated snap-in sleeve with sealing, high sealing rate

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

RQGK2

Plastic connector, quick-type, straight inner thread metric or PG made of nickel-plated brass, integrated snap-in sleeve with sealing, high sealing rate

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

RQG3

Plastic connector, quick-type, straight inner thread metric or UNEF, integrated snap-in sleeve, conically sealing

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP66

Flammability class: V0 - UL 94

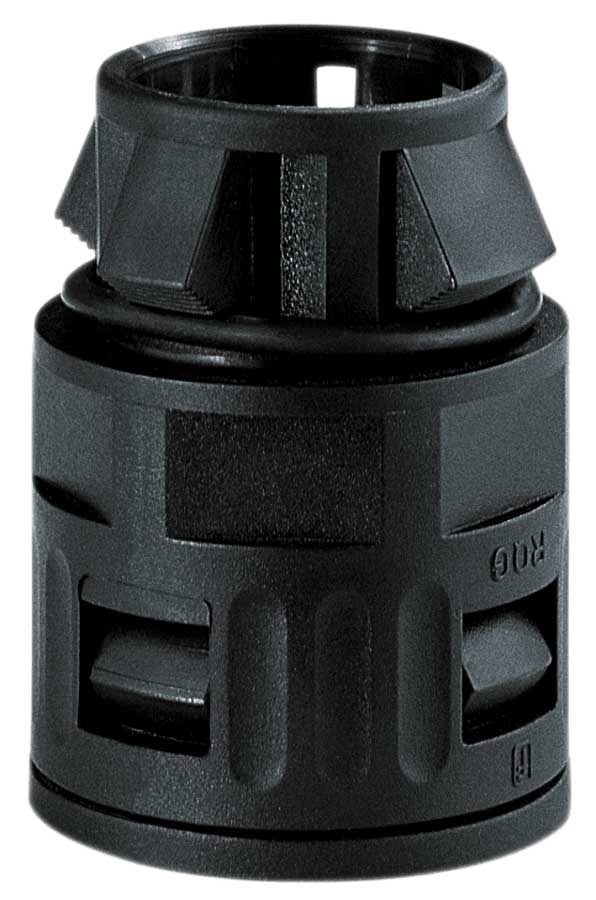

RQG1-S

Plastic connector, quick-type, straight plug-type connection, conically sealing for quick assembly

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP66

Flammability class: V0 - UL 94

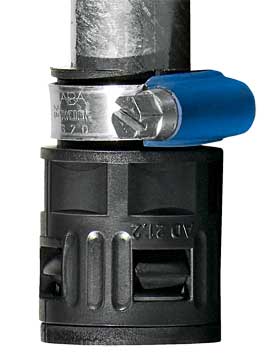

RQGST

Plastic connector, quick-type, straight high sealing rate, to connect with metric solid installation tube, incl. conduit clamp

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

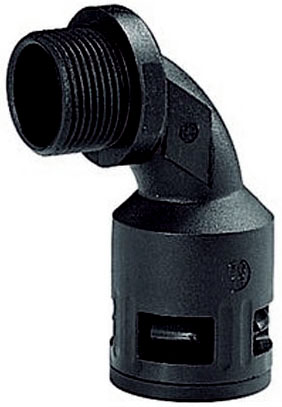

RQB90

Plastic connector, quick-type, bend 90° outer thread metric or PG, integrated snap-in sleeve with sealing, high sealing rate

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

RQBK90

Plastic connector, quick-type, bend 90° outer thread metric, PG or NPT made of nickel-plated brass, integrated snap-in sleeve with seeling, high sealing rate

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

RQBK90DR

Plastic connector, quick-type, bend 90° turnable outer thread metric, PG or NPT made of nickel-plated brass, integrated snap-in sleeve with seeling, high sealing rate

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

RQB1 90

Plastic connector, quick-type, bend 90° metric outer thread, integrated snap-in sleeve, conically sealing

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP66

Flammability class: V0 - UL 94

RQB45

Plastic connector, quick-type, bend 45° outer thread metric, PG or NPT, integrated snap-in sleeve with sealing, high sealing rate

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

RQBK45

Plastic connector, quick-type, bend 45° outer thread metric or PG made of nickel-plated brass, integrated snap-in sleeve with seeling, high sealing rate

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

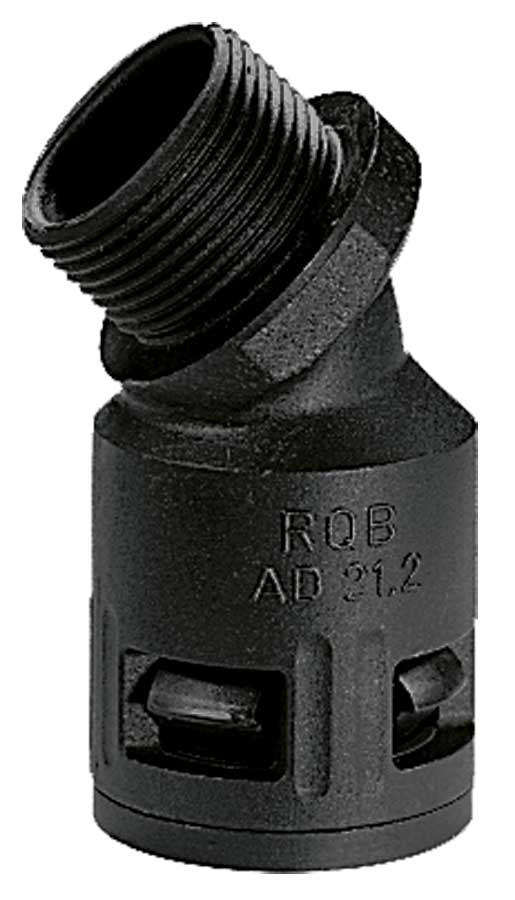

RQB1 45

Plastic connector, quick-type, bend 45° outer thread metric or NPT, integrated snap-in sleeve, conically sealing

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP66

Flammability class: V0 - UL 94

RQW

Plastic connector, quick-type, elbow 90° outer thread metric, PG, CTG or NTP, integrated snap-in sleeve with seeling, high sealing rate

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

RQW1

Plastic connector, quick-type, elbow 90° outer thread metric, PG or NPT, integrated snap-in sleeve, conically sealing

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP66

Flammability class: V0 - UL 94

RQW-F

Plastic flange for all metric connectors with outer thread acc. to EN 60423

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68

Flammability class: V0 - UL 94

RQF2-M

Plastic connector, quick-type elbow flange 90° incl. flange-sealing

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68

Flammability class: V0 - UL 94

RQE

End cap / transition from tubing to cable, rational tubing end, assembled by just putting on

Material: TPE

Temperature: -40°C...+115°C

RQA

Terminal sleeve for cable protection, attachable on all ROHRflex®-tubings

Material: PA6

Temperature: -40°C...+115°C

Flammability class: V0 - UL 94

RGE

Metal connector, safety-type, straight for EMC applications, outer thread metric, incl. special sealing, brass thrust collar and O-ring for protective conduit ROHRflex PA 6-CU

Material: nickel-plated brass

Temperature: -40°C...+120°C

Prot. rate [acc. to EN 60529]: IP66

Flammability class: V0 - UL 94

RQPRO

Heavy abrasion protector incl. screws made of stainless steel, to protect the tubing installation, mainly for extremely mechanical stresses

Material: PA6

Temperature: -40°C...+115°C

Flammability class: V0 - UL 94

Multi-GFP

One-part flange connector, straight, for cable buncher ROHRflex®-Multi

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP54 - IP69K

Flammability class: V0 - UL 94

Multi-WFP

One-part flange connector 90° elbow, for cable buncher ROHRflex®-Multi

Material: PA6

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP54 - IP69K

Flammability class: V0 - UL 94

Multi-FRM

Special sealing for ROHRflex®-Multi connectors

Material: foam rubber

Temperature: -40°C...+115°C Prot. rate [acc. to EN 60529]: IP65

Flammability class: V0 - UL 94

Multi-FRM68

Special sealing for ROHRflex®-Multi connectors

Material: TPE

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP68 / IP69K

Flammability class: V0 - UL 94

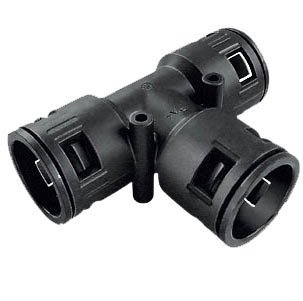

RQT

Plastic T distributors for rational tubing assambly by just putting on

Material: PA6 or TPE

Temperature:
-40°C...+115°C RQT-PA
-40°C...+120°C ^+150°C RQT

Prot. rate [acc. to EN 60529]: IP66 / IP68/IP69K

Flammability class: V0 - UL 94

RQY

Plastic T distributors for rational tubing assambly by just putting on

Material: PA6 or TPE

Temperature:
-40°C...+115°C RQY-PA
-40°C...+120°C ^+150°C RQY

Prot. rate [acc. to EN 60529]: IP66 / IP68/IP69K

Flammability class: V0 - UL 94

RQK

Plastic T distributors for rational tubing assambly by just putting on

Material: PA6 or TPE

Temperature:
-40°C...+115°C RQK-PA
-40°C...+120°C ^+150°C RQK

Prot. rate [acc. to EN 60529]: IP66 / IP68/IP69K

Flammability class: V0 - UL 94

RQGR

Plastic connector, quick type, reducer

Material: PA

Temperature: -40°C...+115°C

Prot. rate [acc. to EN 60529]: IP66 / IP68/IP69K

Flammability class: V0 - UL 94

RQH

Tubing clamp for light applications with through hole for fastening by screws, ribbed fixing for strain relief, assembly of varying sizes joined feasible, applicable in combination with C-profile bars

Material: PA6

Temperature: -40°C...+115°C

Flammability class: V0 - UL 94

RQHD

Cover RQHD for tubing clamp RQH

Material: PA6

Temperature: -40°C...+115°C

Flammability class: V0 - UL 94

RQHV

Connecting element RQHV for tubing clamp RQH

Material: PA6

Temperature: -40°C...+115°C

Flammability class: V0 - UL 94

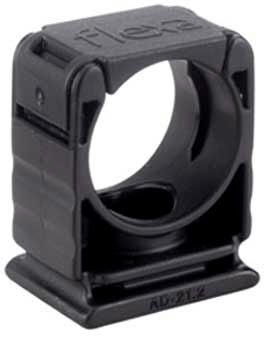

RQHG

Tubing clamp with cover for light applications with through hole for fastening by screws, ribbed fixing for strain relief, assembly of varying sizes joined feasible, applicable in combination with C-profile bars

Material: PA6

Temperature: -40°C...+115°C

Flammability class: V0 - UL 94

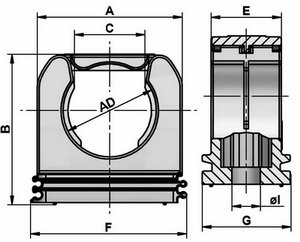

RQS

One-piece tubing clamp for medium and heavy applications with through hole for fastening by screws, ribbed fixing for strain relief, quick assembly - cover connected with integral hinge, assembly of varying sizes joined feasible, applicable in combination with C-profile bars

Material: PA6

Temperature: -40°C...+115°C

Flammability class: V0 - UL 94

RQM

Heavy Tubing clamp for heavy duty applications with fastening bore hole, ribbed fixing for strain relief, assembly of varying sizes in line feasible or on top of each other, applicable in combination with C-profile bars

Material: PA6

Temperature: -40°C...+115°C

Flammability class: V0 - UL 94

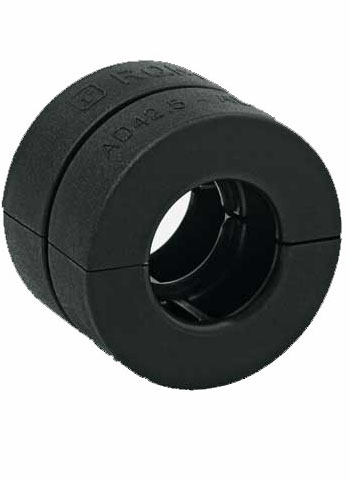

RQMR

Reducer for tubing clamp RQM with ribbed fixing for strain relief

Material: PA6

Temperature: -40°C...+115°C

Flammability class: V0 - UL 94

RQMR-Kabel

Reducer for cables for tubing clamp RQM gentle clamping of cables, vibration inhibiting, combined with tubing clamp RQM and conduit abrasion protector RQPRO

Material: TPE

Temperature: -40°C...+120°C ^+150°C
