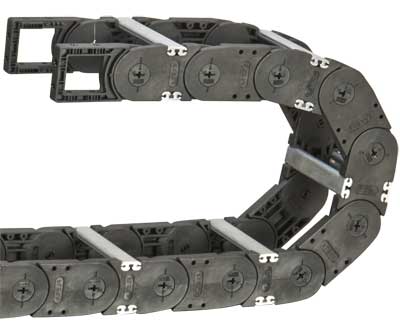

• highly stressable
• economical
• easy to mount
• compatible connections
• designed for extended lifetime
• inner/outer widths up to approx. 600 mm available
• simple handling with standard tools
• delivered in sections of 1 mtr. (standard)
Material: Link plates: PA6-GFK plastics
Frame bar: aluminium
Temperature: -40°C...+135°C
Inner hight Hi 34 mm
Outer hight Ha 52 mm
Number of chain links/mtr. 14
Pitch T 70 mm
Free carrying length max. 3500 mm
Travel standard L max. 35 m
Travel in channel max. 60 m
Load max. 20 kg/m
Speed max. 10 m/s2
Acceleration max. 15 m/s2
Tensile strength max. 1350 N
• highly stressable
• economical
• easy to mount
• compatible connections
• designed for extended lifetime
• inner/outer widths up to approx. 600 mm available
• simple handling with standard tools
• delivered in sections of 1 mtr. (standard)
Material: Link plates: PA6-GFK plastics
Frame bar: aluminium
Temperature: -40°C...+135°C
Inner hight Hi 49 mm
Outer hight Ha 77 mm
Number of chain links/mtr. 10
Pitch T 100 mm
Free carrying length max. 4600 mm
Travel standard L max. 50 m
Travel in channel max. 100 m
Load max. 35 kg/m
Speed max. 10 m/s2
Acceleration max. 15 m/s2
Tensile strength max. 2200 N
• highly stressable
• economical
• easy to mount
• compatible connections
• designed for extended lifetime
• inner/outer widths up to approx. 600 mm available
• simple handling with standard tools
• delivered in sections of 1 mtr. (standard)
Material: Link plates: PA6-GFK plastics
Frame bar: aluminium
Temperature: -40°C...+135°C
Inner hight Hi 80 mm
Outer hight Ha 108 mm
Number of chain links/mtr. 8
Pitch T 125 mm
Free carrying length max. 6600 mm
Travel standard L max. 75 m
Travel in channel max. 120 m
Load max. 80 kg/m
Speed max. 10 m/s2
Acceleration max. 15 m/s2
Tensile strength max. 4300 N

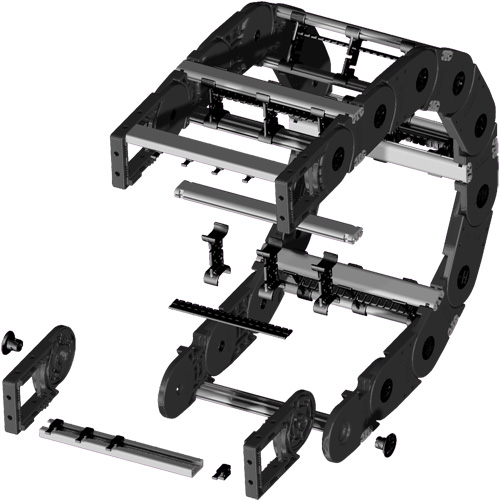

• PS separator
• LP layer stay
• PB standard connector
• SCSRN strain relief bar
• SPR2 sliding fixture
• PH-G glider
Temperature: -40°C...+135°C
A channel system can be useful or indispensable if you have
• longer distances
• hight travel speed
• high acceleration
• small guide chains with big radii
They prevent the overturning of the guide chain and lateral deflection
Material: aluminium
