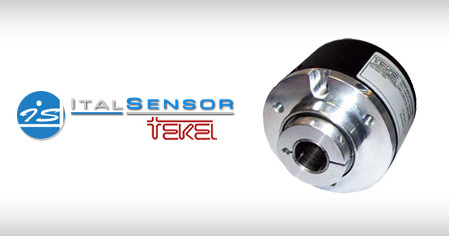

TTMAWETH635
TTMAWETH635
Body diameter (mm) 63,5
Mechanical assembly through antirotation spring
Diameter shaft hollow (mm) 15 (depth 24.5 with chiusura by collar)
Resolution (PPR) max 4096 (programmable by user)
Available codes B
Interface Ethernet 10/100The IP address of the encoder is modified by the user using the application supplied
with the device itself. The connection is done by opening an TCP / IP socket and the
location is transmitted to the user as a result of an HTTP GET request, or, again through
TCP / IP sockets, using Italsensor protocol based on ASCII characters. Using the commands
provided by the protocol it is possible to modify encoder resolution, counting direction
and execute code reset.Contact Italsensor Srl for further info about this subject.
