Кабелеукладочные цепи PL

Кабелеукладчики FLEXA серии PL

Кабелеукладчик PL3

• hinged

• to be opened manually, ‌ quick and easy

• optimized wall thickness/ ‌ interior ratio

• economical

• extended lifetime

• loadable across entire ‌ inner chain width

• delivered in sections ‌ of 1 mtr. (standard)

Кабелеукладчик FLEXA PL3

Material: PA6 GFK plastics

Temperature: -40°C...+135°C

Inner hight Hi‌‌ ‌18 mm

Outer hight Ha‌ ‌‌22 mm

Number of chain links/mtr.‌ ‌31

Pitch T‌ ‌‌32 mm

Free carrying length‌ ‌max.‌ 1750 mm

Travel standard L max. 35 m

Travel in channel max. ‌‌‌60 m

Load max.‌ ‌4,0 kg/m

Speed max.‌ ‌‌10 m/sec2

Acceleration max.‌ 10 m/sec2

Tensile strength max. ‌13‌50 m ‌

Кабелеукладчик PL4

• hinged

• to be opened manually, ‌quick and easy

• optimized wall thickness/ ‌interior ratio

• economical

• extended lifetime

• loadable across entire ‌ inner chain width

• delivered in sections ‌ of 1 mtr. (standard)

Кабелеукладчик FLEXA PL4

Material: PA6 GFK plastics

Temperature: -40°C...+135°C

Inner hight Hi‌‌ ‌25 mm

Outer hight Ha‌ 30 mm

Number of chain links/mtr.‌ ‌‌‌‌‌22

Pitch T‌ ‌‌48 mm

Free carrying length‌ ‌max.‌ 2300 mm

Travel standard L max.50 m

Travel in channel max. ‌‌‌100 m

Load max.‌ ‌‌‌7,50 kg/m

Speed max.‌ ‌10 m/sec2

Acceleration max.‌ 10 m/sec2

Tensile strength max. ‌2200 m‌

Кабелеукладчик PL5

• hinged

• to be opened manually, ‌ quick and easy

• optimized wall thickness/ ‌ interior ratio

• economical

• extended lifetime

• loadable across entire ‌ inner chain width

• delivered in sections ‌ of 1 mtr. (standard)

Кабелеукладчик FLEXA PL5

Material: PA6 GFK plastics

Temperature: -40°C...+135°C

Inner hight Hi‌‌ 34 mm

Outer hight Ha‌ ‌40 mm

Number of chain links/mtr.‌ 18

Pitch T‌ ‌55 mm

Free carrying length‌ ‌max.‌ 3100 mm

Travel standard L max. ‌‌75 m

Travel in channel max. ‌‌120 m

Load max.‌ ‌‌8,00 kg/m

Speed max.‌ 10 m/sec2

Acceleration max.‌ 10 m/sec2

Tensile strength max. ‌4300 m ‌

Соединительные детали и комплектующие

• PS separator

• PBZ connector with strain relief

• PB standard connector

• PB-L/R flat connectors

• PB-V heavy-duty connector

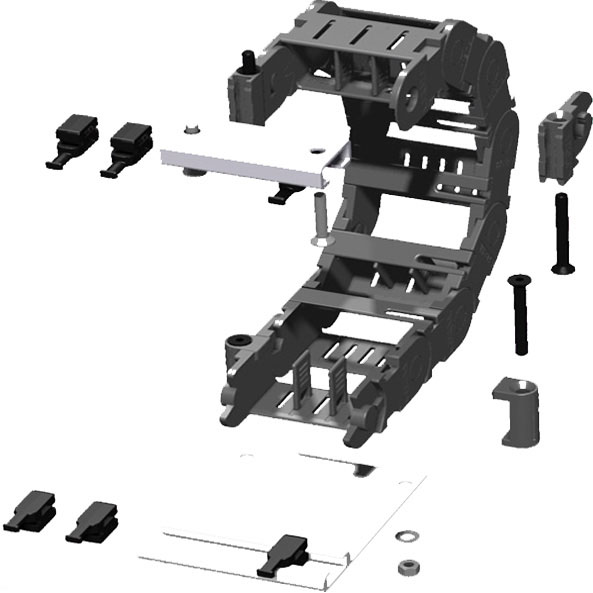

Соединительные детали и комплектующие для кабелеукладчиков FLEXA

Temperature: -40°C...+135°C

Канальная система ARAW

A channel system can be useful or indispensable if you have

• longer distances

• hight travel speed

• high acceleration

• small guide chains with big radii

They prevent the overturning of the guide chain and lateral deflection

Канальная система FLEXA ARAW

Material: aluminium
